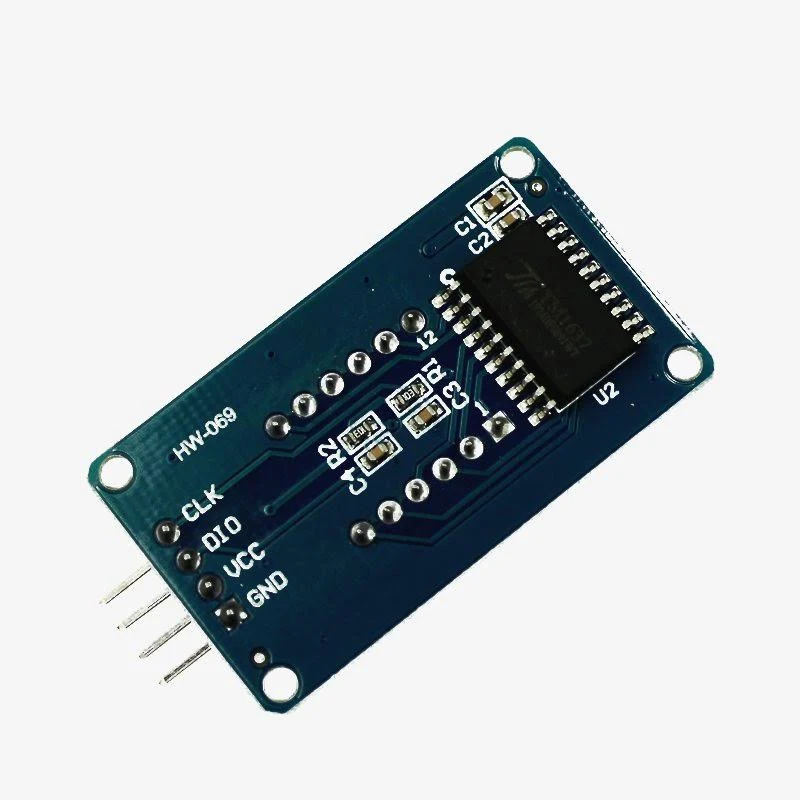

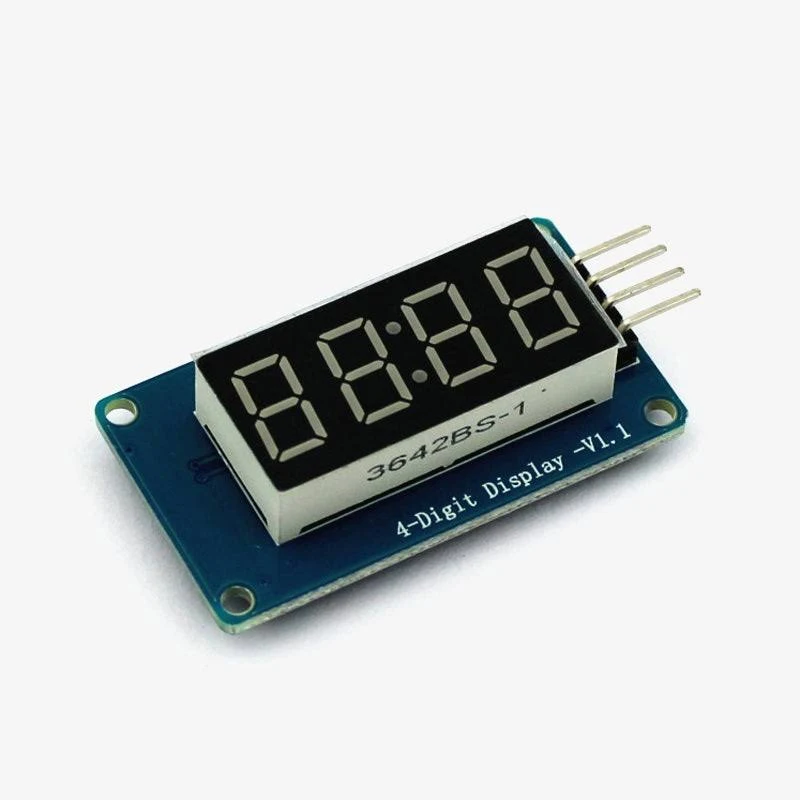

A standard 7-segment display is an essential visual output component comprising seven individual LEDs arranged in a figure-eight pattern, often accompanied by an eighth LED for a decimal point. It is universally used in electronics curricula to teach students the fundamentals of digital logic, binary-to-decimal conversion, and pin multiplexing. When integrated with development platforms like the Arduino UNO or Magic Board, it provides an excellent hands-on method for building digital counters, countdown timers, and simple numeric readouts. Furthermore, it serves as a practical foundation for introducing students to shift registers as a way to manage wiring complexity and expand microcontroller capabilities.
